Spiral Wound Gaskets – Precision Sealing For High-Performance Applications
At Vrushabh Engineering, we are dedicated to producing high-quality spiral wound gaskets that deliver outstanding sealing performance in challenging industrial settings. As a prominent spiral gasket manufacturer, we offer solutions specifically designed for industries like oil and gas, petrochemicals, power generation, and chemicals.
Expert manufacturing and superior performance
Our spiral wound gaskets are created by spirally winding a preformed metal strip along with filler material onto the outer edge of metal winding mandrels. This technique results in a combination of metal and non-metallic layers that are continuously wound until the desired outer diameter is reached. The outcome is a highly resilient and durable spiral gasket that effectively maintains a seal even under varying pressure and temperature conditions.
Compatible with flange closures across a wide temperature spectrum, from cryogenic levels to approximately 2000°F, and pressure ratings reaching up to 2500 psi, our spiral wound metallic gasket is designed to endure extreme operational conditions. Their inherent flexibility and recovery properties render them more resilient than other metallic gaskets, ensuring reliable performance under fluctuating loads.
Our product range
At Vrushabh Engineering, we recognize the critical role of precision in industrial sealing. Therefore, our spiral wound gaskets are designed to meet the highest quality standards. Our products are engineered to provide a secure and leak-proof seal under diverse operating conditions, ensuring reliability and efficiency for essential industrial applications.
At Vrushabh Engineering, we provide an extensive selection of spiral wound gaskets tailored to fulfil various industrial requirements. Our offerings encompass Type R, RIR, CG, CGI, HE, HE-CG, HE-CGI, CG-RJ, M, MC, MCS, T, Type 625, and Carrier Ring models. Each spiral gasket type is meticulously designed for particular applications, ensuring exceptional sealing performance even under extreme pressure and temperature conditions. Whether utilized in high-pressure systems, heat exchangers, or boiler assemblies, our gaskets guarantee reliability and longevity in challenging environments.
Type | Construction | Use & Suitability |
Type R | Inner and outer diameter reinforced with plies of metal without filler | Greater stability and better compression characteristics. Tongue & groove /male & female/groove to flat face flange assemblies. |
Type RIR | Solid inner metal ring as compression stop to fill annular space between flange bore & inside diameter of gasket. | Prevent accumulation of solids, reduce process fluids turbulent flow and minimize flange face erosion. Suitable for male and female pipe flanges. |

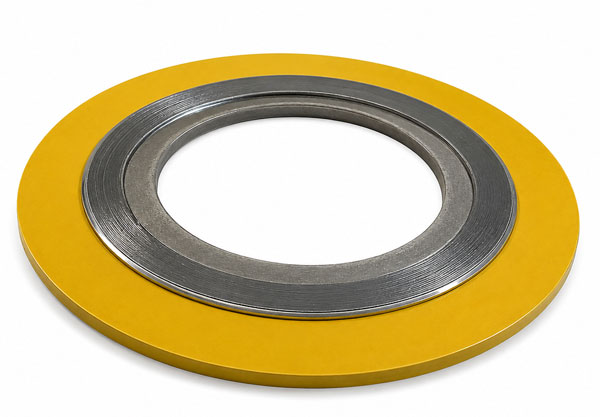

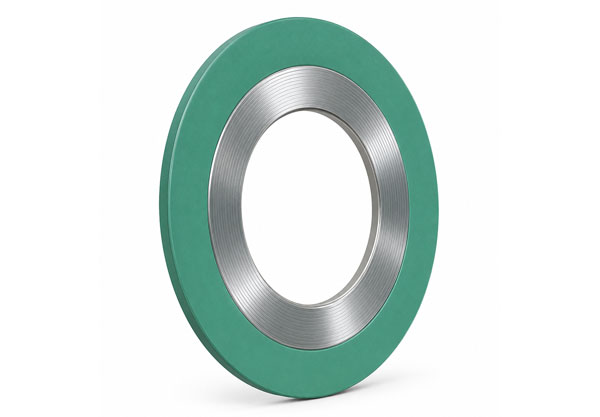

Type CG | External ring centering gasket on flange face for more radial strength. | Prevent gasket blowout, compression stop. Suitable for Flat & raised face flanges. |
Type CGI | Solid metal Inner ring acc. to ASME B16.20 for class 900, 1500, 2500, NPS greater than 24”, 12”, 4” resp. & metal winding of same material. | Suction side of pumps /compressors, smooth surface finish (125 Ra max), prevent over compression of gasket. Suitable for Flat & raised face flanges, corrosive/ toxic media, high press. /high temp. Service. |
Type HE | Standard spiral wound on outer portion & single or double jacketed for pass bar, fastened to ID of spiral wound portion. | As Heat exchanger gaskets with heat exchangers requiring pass bars. |
Type HE-CG | Similar to Type HE with outer guide ring & spiral wound primary seal. | Resiliency and excellent sealing quality. |
Type HE-CGI | Varied CGI with an inner ring & spiral wound steel nose/ solid metal outer ring. | Accurate gasket location. Used in Heat exchangers, TEMA type flange arrangements. |
Type CG-RJ | Special sized CG gasket with outer ring to cover ring joint grooves. | Maintenance repair item prevents SPW portion from entering groove & suitable for Standard ring joint flanges. |
Type M, MC, MCS | MC has Pre-formed inner &/or outer rings of spiral winding with a centering guide. MCS has a solid metal inner &/or outer ring. | Boiler manholes cover assembly, high pressure systems. Depending on manhole plate configuration these are oval, round, obround in shape & prevent shouldering and pinching due to radial misplacement. |
Type T | Round, oval, square, diamond, obround, pear shaped gaskets. | Boiler hand hole & tube cap assemblies. Relies on internal pressure in boiler to seat the gasket. |
Type 625 | Similar to Type R & 0.0625” thick. | High pressure sealing in space restricted applications. |
Carrier Ring | Integral construction of 2 spiral wound gaskets placed in a specially machined metallic ring. | High recovery & Ease of handling. |
Why Vrushabh Engineering stands out
As one of the most prominent spiral wound gasket manufacturers, we are recognized for our dedication to quality and customer satisfaction. Our manufacturing facility is outfitted with state-of-the-art machinery and rigorous quality control systems, ensuring that each spiral gasket adheres to stringent performance criteria. Our skilled engineering team is committed to continuous innovation and improvement of our product range, establishing us as the preferred manufacturer of spiral wound gaskets in India.
Industries we serve
Our spiral wound gaskets are trusted by leading companies in industries like –
✔ Oil and Gas
✔ Petrochemicals
✔ Power Generation
✔ Chemical Processing
✔ Manufacturing
Global reach and trusted partnerships
Vrushabh Engineering is proud to be one of the most admired spiral wound gasket manufacturers for clients across the globe. Our reputation as a dependable spiral gasket manufacturer is well-established in key markets such as France, China, Indonesia, Brazil, Israel, Germany, Thailand, and the USA. Clients rely on us for our consistent quality and our capability to deliver gaskets that excel in the most demanding conditions.
Dedication to quality and excellence
Our unwavering commitment to excellence guarantees that every spiral gasket we manufacture meets rigorous quality standards. We perform comprehensive testing and quality assessments to ensure that our gaskets provide optimal sealing performance. Whether you are searching for spiral wound gaskets near me, or require a specialized solution for a complex industrial application, Vrushabh Engineering is your reliable partner.
Get in touch
Experience why Vrushabh Engineering is a leading manufacturer of spiral wound gaskets. Contact our team today to learn more about our extensive range of spiral wound gaskets and customized solutions for your business.
